The Mechanics of Mud: Off-Road Tires, Portal Lifts, and Max Traction
Beyond the Pavement
Street driving? Please. That’s just a warm-up lap for folks who don’t want to get their boots dirty. Asphalt minds its manners, all smooth and proper, just giving your tires a gentle pat and sending you on your way.
But off-road? Now you’re in the ring with a wild animal, and it’s not about to let you win easy. Welcome to the world of terramechanics, where the dirt fights back and your rig has to muscle its way across ground that’s got a mind of its own.
The second you hit the dirt, everything flips upside down. The ground squishes, slides, and sometimes just plain surrenders under your tires. Out here, the rules of the road don’t mean a thing.
Mud is the real troublemaker out here, and let me tell you, it’s not just wet dirt. It’s a whole buffet of slop, every color and texture you can imagine, and each one is messier than the last.
The mud under your wheels is the boss out here. It picks your tire tread, tells your torque what to do, and decides just how hard you’ll have to mash the gas if you want to claw your way out in one piece.
Every rig’s got its own way of handling this mess, and some do it with a whole lot more style than others.
Take ATVs, for example. They’re little powerhouses, but if you want to keep one upright, you better be ready to wrestle it and shift your weight like you’re riding a wild hog at the county fair.
Then you’ve got UTVs, or Side-by-Sides. They’re wider, longer, and built to spread out like a picnic table at a family reunion. Under the hood, they’ve got all sorts of fancy belts and pulleys in that CVT, keeping the torque steady and relentless when you’re buried up to your axles in a bog.
And way out on the edge, you’ll spot the Mega Trucks. These are the giants—towering metal beasts rolling on tractor tires big enough to make a farmer jealous. Their radiators ride up high, way above the muck, so they don’t end up coughing and sputtering when things get deep.
Mega trucks run on pure, wild horsepower. They need every bit of raw wheel speed they can get just to chew their way through heavy clay that would stop anything else dead.
So here’s the plan: we’re about to dive headfirst into the brutal reality of mud. We’ll get our hands dirty with the math of traction, check out the beefy driveline parts you need to survive, and figure out just what it takes to drag a stuck rig out of a swamp that’s got more suction than your grandma’s old Hoover.

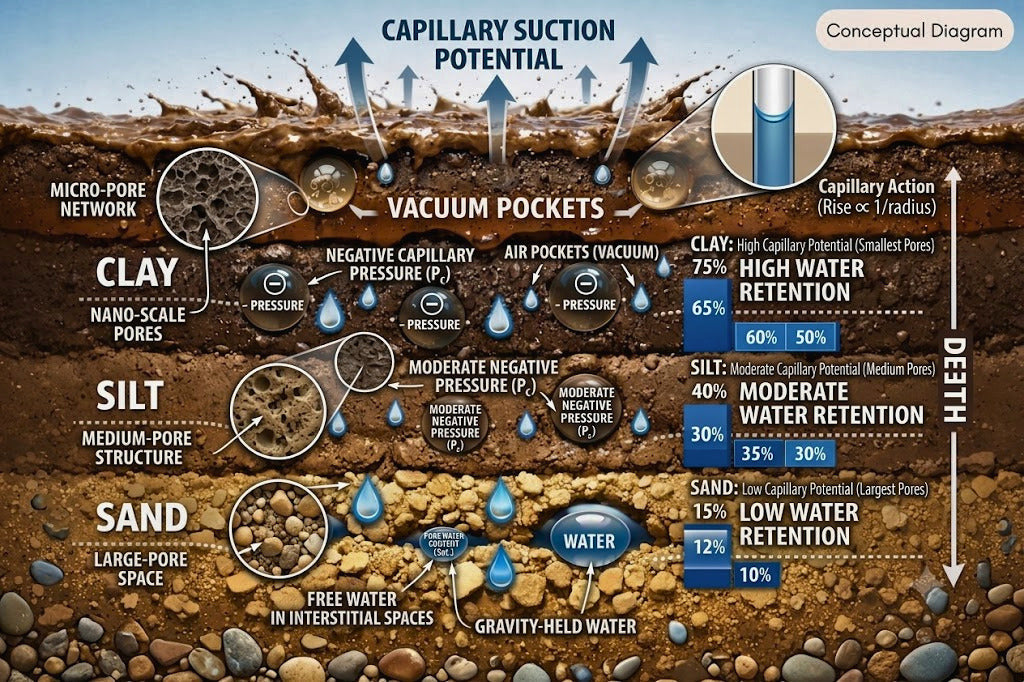

Geotechnical Ground Rules: The science of dirt (Bekker, OSHA types, sinking vs. slipping).
But before we get knee-deep in mud, we’ve got to talk about dirt first.
Geotechnical engineers—those folks with the fancy degrees—break down soil by what’s in it and how much water it can hold. The main ingredients are always the same: sand, silt, and clay.
How those three mix together decides everything. It changes the feel under your boots, how water drains, and whether the ground will hold up your truck or just open up and swallow it whole.
Engineers use something called the Unified Soil Classification System, with all sorts of strict rules and tests, to figure this stuff out. They’re mainly looking at two things.
First up is the Liquid Limit. That’s the magic moment when wet dirt quits acting like modeling clay and starts running like soup.
Next is the Plasticity Index. That’s the sweet spot where dirt bends and molds but doesn’t turn into a puddle. Sticky, clay-heavy soils play by their own rules here, totally different from loose, sandy stuff.
OSHA’s got its own way of sizing up dirt. They’re worried about trenches caving in on job sites, but those same ratings will tell you if your tires are going to grip or just spin like crazy.
Type A soil is loaded with clay and loam. When it’s dry, it packs down like concrete and gives your tires a grip you can brag about. But let it get wet, and suddenly you’re in a sticky mess that’ll have you spinning your wheels and cussing.
Type B soil is mostly silt and sharp gravel. It holds together okay, but put some weight on it and it falls apart. This stuff loves to pack into your tire treads and turn them into slicks faster than you can say ‘stuck.’
Type C soil is the absolute worst for traction. It’s mostly loose sand, gravel, or dirt floating on top of seeping water. There’s no backbone to it at all.
The second you stomp the throttle on Type C soil, the ground just gives up. Your tires spin, dig a hole, and before you know it, your rig’s sunk down to the frame and you’re hollering for a tow.
Water drainage is a big deal out here. Hydrologic Soil Groups rate drainage from Group A all the way to Group D, and that makes all the difference when you’re picking your line.
Group A soils are mostly sand, so water just runs right through them and leaves the ground pretty firm—at least until you get a real gully-washer.
Group D soils are packed with heavy clay that swells up and flat-out refuses to drain. Long after the rain quits, Group D dirt holds onto water like a grudge, turning the ground into those deep, bottomless bogs that love to swallow trucks whole.
The art of getting stuck in the mud didn’t just pop up overnight. Way back in the mid-1900s, a brainy engineer named M.G. Bekker set the ground rules for how big machines tango with soft earth. Then a few more clever folks took his ideas and turned mud-slinging into a full-blown science.
Ever wonder how a beastly UTV or a sky-high Mega Truck muscles through a swamp? It all comes down to the science these folks cooked up. They broke down the muddy mayhem into two forces battling for control.
First up: the downward crush. The engineers call it normal stress, but we just call it the reason your rig starts to disappear into the muck.
Next comes the forward bite—shear stress if you want to sound fancy. This one decides if you’re blasting ahead or just digging a muddy grave for your axles.
Let’s talk about sinking. Launch your truck into a bog and gravity does its thing, shoving your tires deep into the slop. You’ll keep dropping until the mud packs in tight enough to say, ‘That’s far enough, buddy.’
Sinking is public enemy number one. The deeper your axles dive, the more mud stacks up in front of your tires. Suddenly, all that horsepower is just getting burned up trying to bulldoze a wall of sludge.
Bekker cracked the code on this downward crush. Turns out, how deep you sink is all about how much your truck weighs compared to how much dirt your tires are actually touching.
Stuck in thick, sticky clay? Your only lifeline is tire width. Slap on some wide rubber and you spread your rig’s weight over a bigger patch of ground, dropping the pressure and giving yourself a fighting chance.
That’s exactly why Mega Trucks roll on those massive, wide flotation tires. Spread the weight, float the beast, and skip the whole ‘sinking to the frame’ routine.
But all that science goes out the window once you stomp the gas. The moment those wheels spin, the game changes. Now your tires are acting like rotary drills, and if you lose momentum in the slop, you’ll dig yourself a muddy grave faster than you can say ‘winch line.’
Sinking is just half the fight. You still have to claw your way out. To find out how much grip the mud really has, engineers break it down into two dirt properties.
First, there’s the chemical glue that makes clay stickier than peanut butter. Second, there’s the gritty friction of sand and rock grinding together under your rig’s weight.
But here’s the trick: your tire doesn’t just grab max traction the instant it hits the dirt. To get moving, your tread has to rip and shear the mud beneath it like a set of mechanical claws.
That means your tires have to spin faster than the ground is rolling by. You need wheel slip if you want to get anywhere.
Here’s the cold, muddy truth about off-roading: if your tires aren’t slipping, you’re not going anywhere. No wheel spin, no forward motion. Simple as that.
When you’re buried in thick, sticky, peanut-butter mud, physics wants a fight. You’ve got to keep the wheel speed up and the tires spinning like mad. That’s the only way to muscle your way out and live to tell the tale.
Know Your Enemy: A breakdown of the mud types
Mud ain’t just mud. It’s a whole rainbow of slop, from watery soup to sticky peanut butter. Every puddle, trail, and pit out there is its own beast, and you better believe each one wants to chew up your truck in a different way. You need a bag of tricks and a little bit of crazy to make it through.
Let’s kick things off with slurry. You know that watery mess hanging out in field puddles or hugging the riverbank after a good southern downpour? That’s slurry. It’s mostly fine silt or sand just swimming in water, acting more like grandma’s soup than anything you’d call dirt.
Slurry won’t grab your chassis or suck you down into a hole, but don’t get cocky. The real danger is losing your grip and spinning out like a greased pig at the county fair.
This stuff is like a layer of bacon grease on top of hard dirt. Hit a corner too hot and your tires forget what friction is. Next thing you know, you’re sliding off the trail and aiming for the nearest tree like it’s got a target painted on it.
You better mind your speed when you hit deep slurry. Blast through a water hole too quick and you’ll send a tidal wave right up your engine’s nose. Unless you’ve got a snorkel tall enough to scare the birds, you’re about to suck water, lock up your motor, and snap a rod faster than you can say ‘tow strap.’
Feather that throttle if you want to make it out alive.
Now let’s talk about silty mud. You’ll find this sneaky stuff on forest trails and farm tracks when spring wakes up the world. Silt is tiny—smaller than sand, bigger than clay, and usually mixed with enough rotting leaves and trail gunk to make a possum gag.
It’s smooth as butter and slicker than a politician. It doesn’t have that sticky glue like heavy clay, but it’ll turn your regular tires into a nightmare real quick.
Try to climb a silty hill and that mud packs itself into your tire treads like it’s paying rent. Suddenly, your fancy all-terrains are as bald as Uncle Larry and you ain’t going nowhere fast.
But here’s the good news: silty mud doesn’t hold on for dear life. Just stomp that right foot and let those tires spin. The faster you go, the more mud you fling out of the lugs. Keep your wheel speed up, clean out those treads, and let your tires do the digging.
Now, sandy mud is a whole different animal. You’ll find this gritty mess in coastal estuaries, desert washes, and river bottoms. Sand particles are big and stubborn—they don’t stick to water, so this mud drains out quick and couldn’t hold onto your boots if it tried.
Since it won’t stick, it won’t pack your treads. But don’t let your guard down—sandy mud has its own sneaky way of trapping you.
Out here, the ground only holds together because those sand grains are clinging to each other for dear life. The moment you stomp the gas, that whole setup falls apart. Your tires start digging like a dog after a bone, and before you know it, you’re sunk to the axles. You need big, wide tires and a gentle throttle if you want to stay on top and not end up calling your buddy for a pull.
And if that ain’t enough, this gritty slop is basically liquid sandpaper. It sneaks into your wheel bearings, suspension bushings, and brake rotors, chewing up your parts like a beaver on a log. By the end of the day, you’ll be hearing noises you never knew your truck could make.
Now for the granddaddy of all off-road nightmares: clay mud. Folks call it Clart, Peanut Butter, or Gumbo, depending on where you hang your hat. If you’ve ever tried to wheel through Houston Black Gumbo in Texas or the bottomless pits of Hog Waller down in Palatka, Florida, you know this stuff is the real deal.
This mud is a science experiment gone wild. Clay is made of tiny layers stacked up like grandma’s biscuits, soaking up water and swelling up big time. Whether it’s just damp or soaked through, it stays sticky and stretchy, ready to grab hold of anything that dares roll through.
This stuff has no friction but sticks together tighter than cousins at a family reunion. It’s basically industrial glue with a bad attitude.
It packs into your tire treads like wet cement and clings to your chassis and suspension, piling on hundreds of pounds of dead weight before you can blink. Your power-to-weight ratio goes out the window faster than a cat at bath time.
But the real kicker is the suction. Gumbo clay grabs the bottom of your truck and pulls like it’s trying to drag you to the center of the earth. Breaking free takes crazy-low gears and a heavy right foot. You need the meanest mud tires you can find and enough horsepower to scare your grandma if you want to make it out of the pit in one piece.
| Mud Type | The Vibe | The Danger | The Fix |
| Slurry | Watery soup over hard dirt | Sliding out, hydrolocking the engine | Feather the throttle, mind your speed |
| Silty | Smooth, slick trail gunk | Packs into treads, turns tires to slicks | High wheel speed to clear out the lugs |
| Sandy | Gritty, fast-draining slop | Sinking fast, chews up bearings/brakes | Wide tires, gentle throttle, stay afloat |
| Clay (Gumbo) | Sticky, heavy industrial glue | Massive weight, extreme suction, broken axles | Extreme mud tires, gear reduction, raw horsepower |
The Geometry of Grip: Tires, treads, and footprints
All the horsepower in the world won’t save you if your tires can’t bite into the dirt. That rubber is your lifeline—the only thing between you and a long walk home. The shape of your tread decides if you’re skimming the surface, sinking to the frame, or grenading your axles in spectacular fashion.
Roll into gumbo-thick clay with basic all-terrains and you’re in for a world of pain. That sticky mess will pack your treads faster than you can say ‘stuck,’ turning your tires into bald racing slicks before you even hit the throttle. If you want to make it out alive, you need real-deal mud tires or beefy tractor rubber.
Picture monsters like the BKT TR171 or the High Lifter Outlaw.
These beasts come loaded with deep, chunky lugs and gaping voids between them. Those gaps aren’t just for show—they’re your mud escape route. They let your tire scoop, smash, and fling dirt like it’s on a mission.
But all that deep tread means nothing if it’s jammed full of mud. Your tire needs to clean itself, and fast. Mash the throttle and let centrifugal force do its thing—flinging mud out of the lugs and revealing fresh rubber for another round. You’re not just driving; you’re launching dirt missiles every rotation.
Pulling this off takes real muscle. Spinning a heavy tire buried in sticky slop isn’t for the faint of heart—or the underpowered.
Modern mud tires don’t stop at the tread—they’ve got gnarly sidewall lugs, too. These side biters are your ticket out when you’re buried in a rut with zero grip at the bottom. Crank the wheel back and forth and those lugs will claw into the untouched dirt on the rut’s edge. You’re not just finding traction; you’re making your own.
Some folks think slapping sand paddles on for mud is a genius move. Spoiler: it’s a fast track to wrecking your ride. Paddle tires are kings of the dunes because sand flows like water. Those big, flat paddles scoop sand and launch you forward—perfect for the beach, not the bog.
Clay mud? That’s industrial-strength glue, and it’s not here to play nice. Slam a full-width paddle into that sticky mess and the mud just laughs, sending shockwaves up your axle and turning your diff into shrapnel. Real mud tires use staggered, angled lugs in a chevron pattern, slicing through the muck bit by bit instead of trying to bulldoze a brick wall.
Off-roaders love to argue: go wide or run skinny pizza cutters? Truth is, there’s no magic answer. It all comes down to what kind of mess you’re about to dive into.
Wide tires mean big surface area. They spread your rig’s weight and keep you from sinking. If you’re aiming for bottomless swamp or deep, shifty sand, you need to go wide and ride the float.
Take skinny tires into a bottomless pit and they’ll cut straight down until your chassis kisses the mud. Once you’re grounded, the mud grabs on tight. Congratulations, you’re no longer a truck—you’re an anchor.
Skinny tires flip the script. They put all your rig’s weight onto a tiny patch, cranking up the ground pressure. These are your heroes on farm roads and old trails, where a slick layer of mud hides solid dirt underneath.
Wide tires? They’ll hydroplane across that greasy top and send you sliding for the ditch. Skinny tires use their pressure to cut through the slime and grab the hard stuff below.
Let’s bust a myth about airing down. Some folks swear letting out air makes your tires way wider. Nope. Not even close.
On modern radials, dropping the pressure stretches your tire longer, not wider. Most of your new grip comes from the tire flattening out front to back, laying down a tank tread footprint.
That long, flat patch gives you monster traction without making your tire any wider up front. It’s a mechanical cheat code: all the grip, none of the mud-plowing.
Bulletproof Insurance: Drivetrain mods, portals, and snorkels.
Want to grenade your drivetrain in record time? Just take your stock rig, aim for the deepest mud hole you can find, and mash the throttle. Slap on a set of forty-inch tractor tires and you’re not just adding weight—you’re strapping a medieval torture device to your axles and clutches. That lever arm is out for blood.
Most modern ATVs and UTVs run on a CVT—a fancy way of saying your power is riding on a beefy rubber belt. Drop into that peanut butter mud and the clay grabs your tires like a jealous ex. Stomp the gas, and if those tires don’t budge, your clutch just spins itself silly, turning that belt into a smoking pile of regret in seconds.
If you want your rig to survive the mud, you’ve got to teach your clutch some new tricks. Crack it open, toss in a beefy chrome-silicon spring, and tweak that helix angle. Now you’re talking mud-ready muscle.
This little mechanical magic turns shifting force into pure, unfiltered clamping power. Your belt gets a death grip—no more slipping, no more smoke, just raw traction when you’re buried to the doors and clawing your way out.
But even if your belt survives, your axles are next on the chopping block. The soundtrack of any mud park? The sweet snap of an axle giving up the ghost.
Run monster tires in deep ruts and you need Herculean torque just to get rolling. All that twisting force shoots straight from the diff down a skinny steel axle, and sooner or later, the metal just taps out. It twists, begs for mercy, and snaps like a breadstick.
The fix? Portal gear lifts. Yank off your factory wheel hub and bolt on a chunk of forged metal wizardry packed with gears.
Portals do two huge things for your ride. First, they drop your axle line four to eight inches below the wheel center, giving you monster ground clearance without wrecking your suspension or grenading your CV joints.
Second, portals put gear reduction right where you want it—at the wheel hub. Run a sixty percent reduction and suddenly your engine, transmission, and axles think theyre spinning baby tires. All that stress vanishes, and you get pure crawling power dumped straight into the mud.
Inside that portal box, power drops from the top input gear to the bottom output gear, all through a single idler gear. Run a monster UTV or a Mega Truck with tractor tires in thick clay, and that poor middle gear is in for a world of hurt.
High-end portals fix the problem with a dual idler setup—two middle gears, side by side, splitting the load like a tag team. That means half the stress, no shattered gears, and way less heat. All this lives inside a forged aluminum box sealed tight with Kevlar gaskets, so the swamp stays out and your gears stay happy. Call it bulletproof insurance.
Drivetrain sorted? Don’t forget your engine. Mud bogs are half water, and your engine is just a giant air pump. Let it gulp a mouthful of muddy water instead of air, and you’re toast.
Water doesn’t compress. When your piston rockets up and slams into a wall of liquid, it bends the connecting rod and grenades your motor. That’s called hydrolock, and it’s game over.
Want to avoid disaster? Run tall snorkels. Route heavy PVC or silicone pipe from your engine intake and CVT exhaust straight up through the roof. Now your rig can breathe easy, even when you’re swimming in mud.
But don’t cheap out with skinny pipes. Your engine needs to breathe. Choke it with a narrow snorkel and you’ll lose horsepower right when you need it most—trying to spin those monster tires clean.
Last pro tip: real mud junkies yank their radiators out of the front grill and mount them high in the cargo bed. Leave your radiator up front and it’ll pack full of clay, turning into a brick and cooking your engine in minutes.
The Final Pull: Winching and conclusion
Taming the mud is like going twelve rounds with Mother Nature herself. Don’t kid yourself—a swamp isn’t just another bump in the trail. Mud comes in every flavor, from watery grit that splashes up your back to thick, industrial-strength clay that’ll eat your tires for breakfast.
The dirt’s personality sets the tone for your whole ride. Is it sticky? Slick? Ready to grab hold and not let go? That’s what decides how you build your beast and how hard you can hammer down.
When that heavy clay locks onto your rig, momentum is your only ticket out. Keep those tires spinning, fling the muck, and pray your treads stay clear. If you want to survive this kind of punishment, your ride better be armored up and ready for war.
You want to chew through the slop? Get yourself tires with monster-sized gaps. And don’t even think about skipping those dual-idler portal gear lifts—they’re the only thing standing between your axles and a world of hurt. Portal boxes let you throw down big power without turning your factory steel into scrap metal.
But here’s the truth: no matter how much armor you slap on, the swamp always gets the last laugh. When your frame sinks and the clay grabs hold, you’re not going anywhere without some winching wizardry. That’s when knowing your way around a snatch block is the difference between getting home and becoming swamp art.
Time to break out the math—mechanical advantage is your best friend here. If you just hammer the winch button and hope for the best, you’ll either fry your motor or snap a cable faster than you can say ‘stuck.’
Getting out of the mud takes more than a lead foot. You’ve got to read the dirt, trust your gear, and show some respect for your rigging. That’s how you drag your beast out of the woods in one piece—and live to tell the tale.
The Mud Survival Kit:
-
Clutch Upgrades: Heavy-duty chrome-silicon springs and tweaked helix angles for maximum belt grip.
-
Portal Gear Lifts: Drops your axle line for monster clearance and puts gear reduction right at the hub to save your driveline.
-
Dual-Idler Gears: Splits the load inside the portal box to prevent shattering gears under heavy torque.
-
Tall Snorkels: Reroutes engine intake and CVT exhaust so your rig breathes air, not swamp water.
-
High-Mount Radiator: Relocated to the cargo bed to keep it from packing with clay and cooking your engine.
